Description of aseptic filler

1. The Aseptic Bag-in-Box Filling Machine is suitable for aseptic filling of fruit and vegetable juice, jam, paste, puree or concentrated products, dairy products and other viscous fluids. The packaging bag is made of aluminum-plastic composite aseptic bag (50~1000L), which can effectively block sunlight and oxygen; and extend product shelf life maximum.

2. The aseptic bag filling machine is made of SUS304 stainless steel. The core components are customized by engineers according to your needs, such as the filling and sealing valve, aseptic valve group, the manufacturing of vulnerable seals, and the programming of operation control system.

3. The main parts are made of high quality brands at home and abroad, such as flowmeter from Cologne, transformer from Delixi, PLC program control from Siemens and electric control components from Schneider, etc

Main characteristics of aseptic bag in drum filler

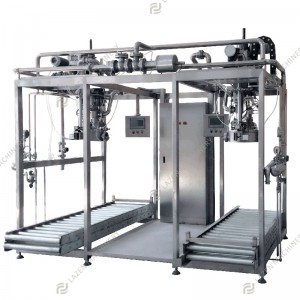

l The aseptic filler mainly consists of aseptic filling head, metering system, roller conveyor system, man-machine interface, PLC control system and operation platform.

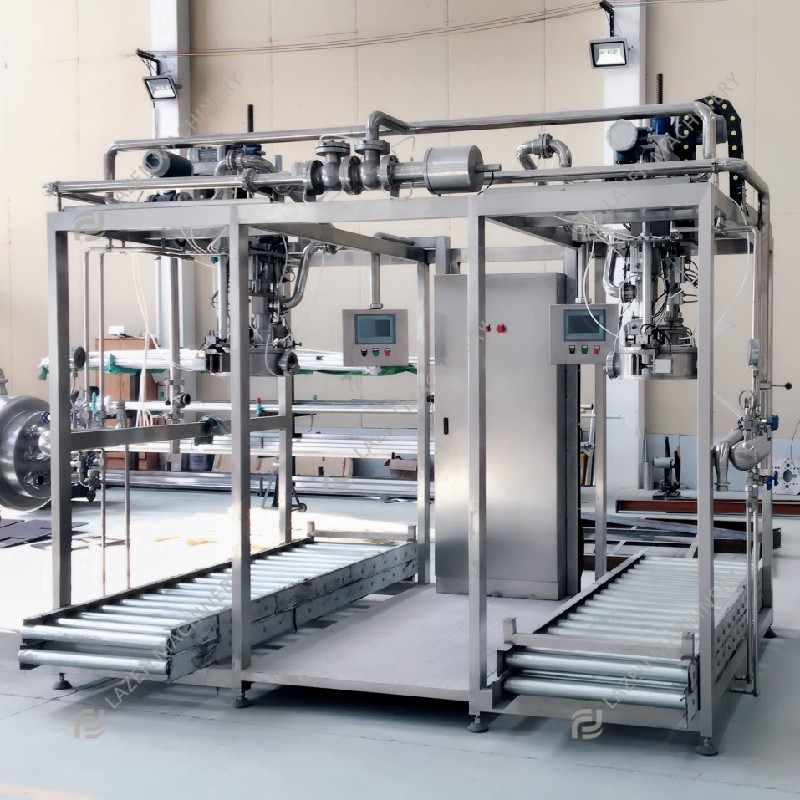

l The aseptic filling machine can be designed as single or double head. The double-headed filling machine can continuously fill, reducing backflow and improving production efficiency.

l Except for motor, electrical configuration and soft connection, it is made of SUS304 or 316L stainless steel.

l The steam injection method in the filling chamber always maintains a high temperature positive pressure. Sterile bag opening, filling, filling and sealing are all done in a sterile environment.

l Suitable for filling bags of different sizes (50~1000L), making the production more flexible.

l Equipped with a condensate collection device to avoid condensation and water leakage.

l And front-stage sterilization machine online control, automatic CIP and SIP.

l Two metering systems are available: weighing and flow metering for precise metering.

l The material pipe joints are protected by a steam barrier, and the filling chamber is steam sterilized to maintain sterility and ensure safe filling.

l The multi-head aseptic filling machine can be customized according to customer's requirements, which is convenient for use with large-capacity sterilization machines.

Technical specifications of aseptic bag in drum filler

Model

LZ-AF-1

LZ-AF-2

LZ-AF-1

LZ-AF-2

Filling Range

5-220L

5-220L

220-1000L

220-1000L

Maximum Filling Capacity

3000L/H

6000L/H

4000L

8000L

Filling Precision

99.5%

99.5%

99.5%

99.5%

Compressed Air pressure

≥0.7Mpa

≥0.7Mpa

0.7MPa

0.7MPa

Compressed Air Consumption

10M3/H

20M3/H

10M3/H

10M3/H

Steam Pressure

≥0.5Mpa

≥0.5Mpa

0.5MPa

0.5MPa

Steam Consumption

20KG/H

40KG/H

20KG/H

40KG/H

Power

1.5KW

2.5KW

3KW

5KW

Dimension (l*w*h)

3000*1600*2600mm

3300*3300*2600mm

6600*3300*2600mm
