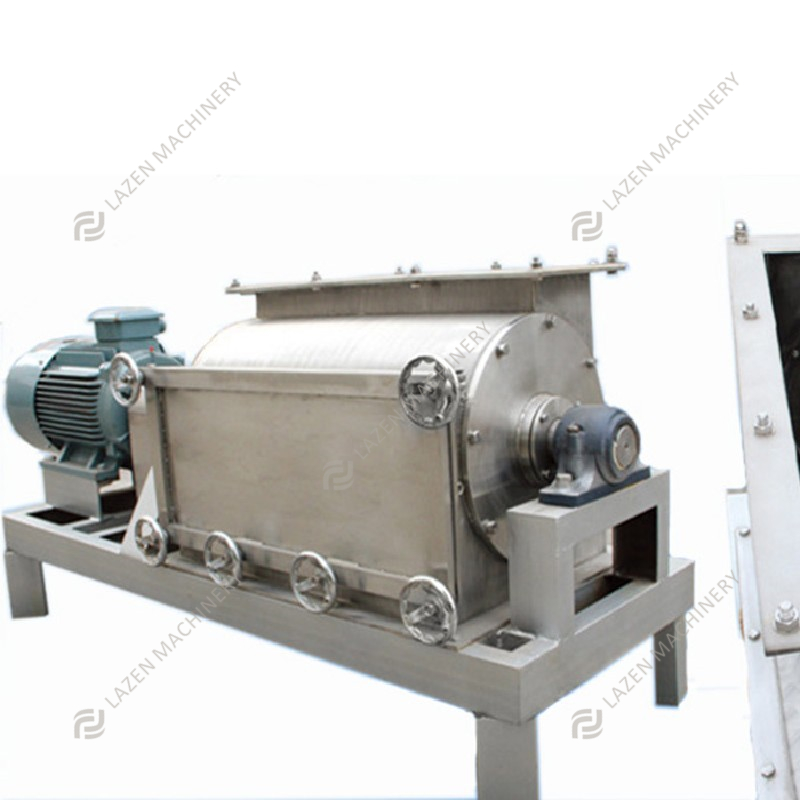

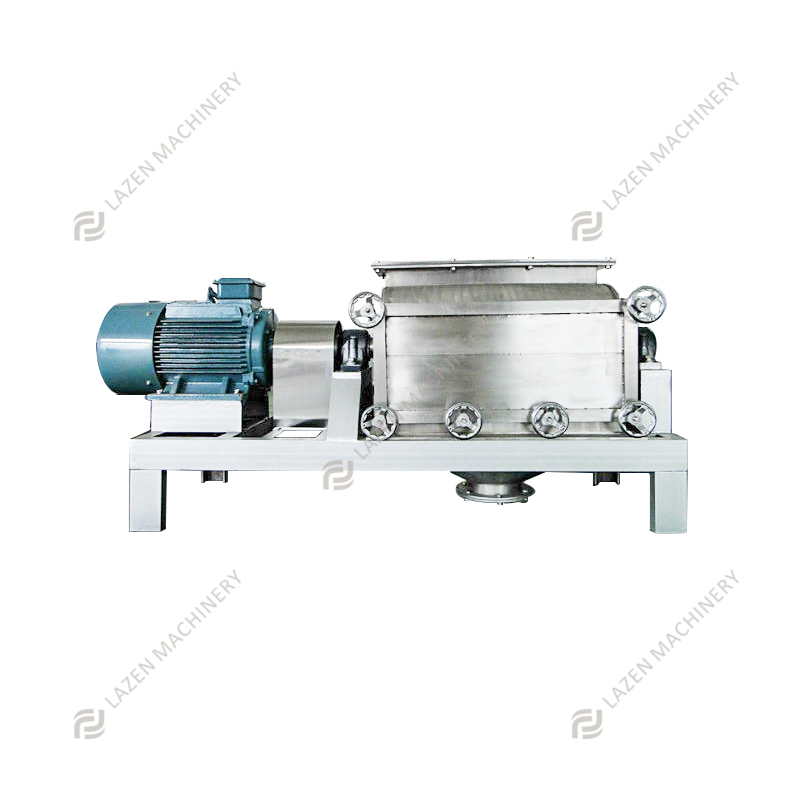

Description of crushing machine

The fruit hammer crusher machine is suitable for the crushing of various fruits, vegetables, such as pears, apples, tomatoes, berry fruit, guava, etc. It is one of the indispensable equipment for processing fruits and vegetables into puree, paste, jam or juice.

Main structure of fruit crushing machine

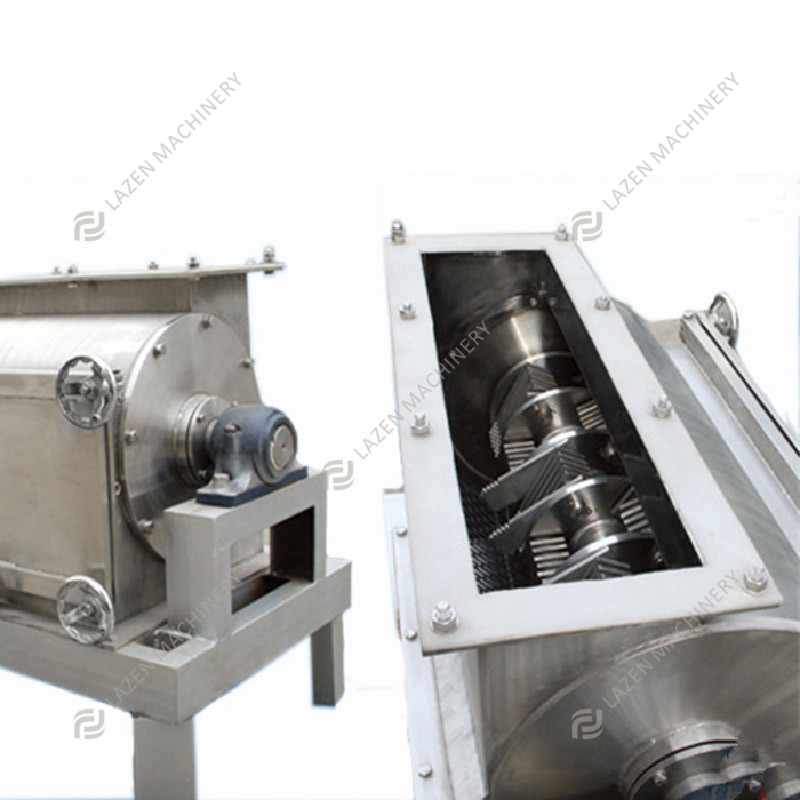

l Hammer crusher is mainly composed of motor, spindle, blade, bearing seat, chassis and frame.

l The Crusher is driven by a motor to rotate the spindle, and the blades are distributed in the middle of the spindle. When the spindle rotates, the hammer generates a great centrifugal force and inertia force at the same time. Under the double action of the two forces, the raw fruit entered by the feed port is rapidly broken, and the original fruit is broken from the lower half of the cylinder mesh into the next equipment.

l The crushed particles are mainly controlled by the size and density of the mesh. Screen can be used to improve the rate of juice, slag discharge cleaner, juice more delicate.

Product characteristics of hammer crusher

1. This machine is used to break up raw materials such as fruits and vegetables into small diameter particles for convenient operation.

2. Incorporating Italian technology, multiple sets of cross-blade structures;

3. The whole machine is made of high quality stainless steel and meets food hygiene standards;

4. The side of the equipment is equipped with a quick opening door for easy cleaning and overhaul;

5. High-precision dynamic balance detection, more balanced operation and lower noise;

6. The feed funnel adopts a ‘Z' shape structure to avoid material splashing;

7. The crushing size can be adjusted according to the requirements of the customer or the specific project, and the juice yield of the raw juice or the original pulp can be effectively improved compared with the conventional structure.

Main model and technical parameters of hammer crusher

Model

LZ-CM-3

LZ-CM-5

LZ-CM-10

LZ-CM-15

LZ-CM-20

Capacity (T/H)

1-3

3-7

7-10

10-15

15-20

Power (KW)

5.5

7.5

18.5

22

30

Rotor Speed (r/min)

1440

1440

1440

1440

1440

Crushing Particle(mm)

2-8

2-8

2-8

2-8

2-8

 Cear Pcs

81

81

135

135

135

Dimension(mm)

1580*550*850

1720*600*1000

1860*750*1100

2100*850*1250

2260*1000*1300
