Description of Roller drum washing machine

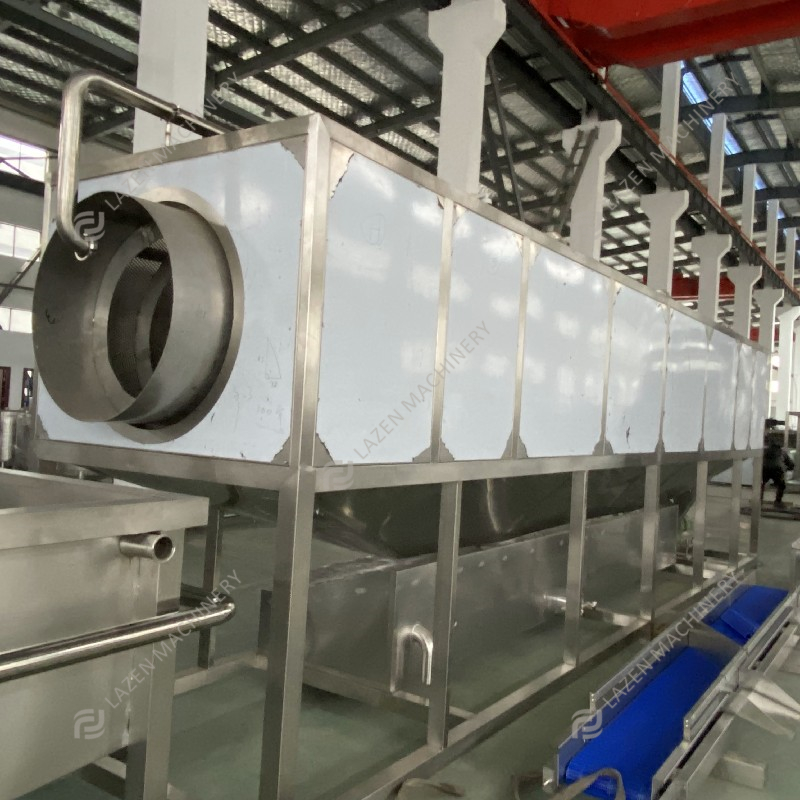

1. The machine is a drum structure, which is composed of a cleaning drum, a main shaft, and a brush transmission device. When working, the transmission device drives the drum and the main shaft to rotate, the friction between the roller and the raw material, the brush and the raw material is used to remove the mud and sand adhered to the surface of the raw material. The raw material is transported from the feed port to the discharge port for discharge, realizing continuous operation.

2. The drum washing machine uses rotary cleaning, the inner spiral guide plate pushes the material, and the material is turned over during the cleaning process, which is conducive to the cleaning of the material.

3. High-pressure water cleaning is used, and the water source can be tap water directly connected to the sprinkler pipe or water storage tank with a high-pressure pump.

4. Continuous production and automatic discharging are possible. For special fruits and vegetables, it can be washed repeatedly until it is cleaned. The drum, feed inlet, outlet, spray pipe and guard plate are all made of high-quality SUS304 plates.

5. The hard brush can be installed in the washing machine to clean and peel carrots, almonds, potatoes, sweet potatoes, etc.

6. The equipment is composed of motors, drums, water pumps, rollers, brackets, supporting wheels, brushes, spray pipes, hoppers, cover plates, water tanks, valves, drive shafts, motor frames, electrical control switches and other components.

7. The machine has features of food-grade nylon brush washing, high-pressure water rinser, material automatic rotate discharging, easy disassembly and operation, water and slag automatic separation, high torque tooth wheel reducer.

8. This equipment can be widely used to clean pueraria lobata root, lotus root, cassava, lily, fern root, carrot, beetroot, ginger, beans, nuts sweet potato, etc. It can remove the tightly adhered mud and sand on the surface and recess of the raw material. At the same time, it is also suitable for the round or oblong fruits and vegetables peeling process after blanching and soaking.

Main Characteristics of Drum washing machine

1. This machine adopts the reducer to drive the spiral rotation and shift the material to achieve the purpose of transportation;

2. In addition to the bearing of the power unit, the rest of the structure is all stainless steel, in line with food hygiene standards;

3. It has the advantages of simple structure, small cross-sectional area, convenient sealing and transportation, multi-point feeding or unloading;

4. Shell type: "O type" or "U type" Spiral form: no shaft, single shaft or multiple shaft;

5. Simple structure, convenient for closed transportation, multi-point feeding or unloading;

6. The inside of the spiral can be added with a flushing water pipe to facilitate the cleaning inside the screw.

Main Model and Technical Parameters of Roller drum washing machine

型号 Model

产能 Capacity(T/H)

功率 Power(KW)

尺寸Dimension(MM)

LZ-RDW-600

1~3

3.7

3500*850*2200

LZ-RDW-800

3~5

4.5

4500*1000*2200

LZ-RDW-1000

8~10

8.2

6000*1200*2200

LZ-RDW-1200

13~15

10.5

7000*1500*2200
