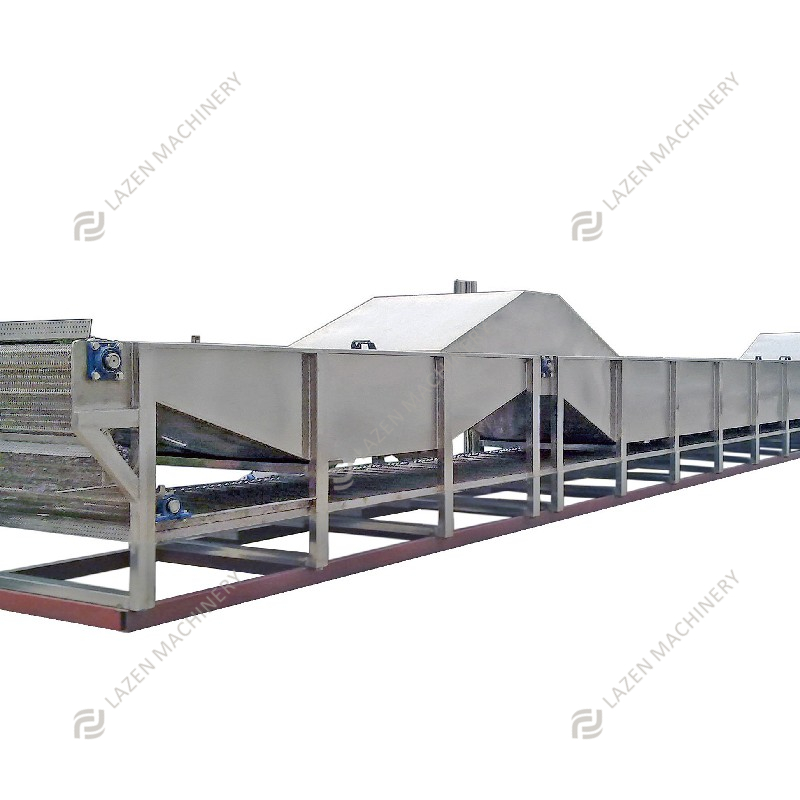

Description of water bath pasteurizing and cooling tunnel

1. Water bath pasteurizer is a secondary sterilization equipment for automatic production line. Pasteurization process is specially designed for filling or packaging products, such as bottled and bagged dairy products, fruit juice, beverages, beer, food, drugs, etc.

2. This machine is a continuous pasteurization cooler. The product is pasteurized and cooled through three process steps: steam spray or circulating hot water spray pasteurization, circulated warm water pre-cooling, and cold water spray cooling.

3. Water bath type pasteurizer is widely used in pasteurizing various types of low-temperature meat products, sausages, canned fruit, fruit juice drinks, vegetable juice drinks, pickles, pickled vegetables, fruit and vegetable sauce, mustard, wild vegetables, jam, jelly, soy products, dairy products, canned food products in flexible pouches or tubes, glass bottle or PP/PE bottles packaging and tin cans. The pasteurizer is also suitable for blanching or pre-cooking of fruits, wild vegetables and other special fruits and vegetables.

Main Features of Water Immersion Type Pasteurizer and Cooling Machine

l High quality. Stainless steel frame, Imported Italian special high temperature resistant network chain

l Energy saving. The working medium used in the sterilization process can be recycled to save energy, time, manpower and material consumption and reduce production costs.

l The temperature of the hot water in the sterilization tank is controlled between 60~95℃ through automatic temperature adjustment.

l With the addition of a stepless speed regulating device, the sterilization time can be automatically adjusted at any time in 5~40 minutes according to different food process requirements.

l It can not only achieve the sterilization effect, but also ensure that the nutritional ingredients such as protein do not fluctuate within a large temperature range, maintain the original quality of the food, and extend the shelf life without adding preservatives and additives to the food, thereby protecting people’s Health of life

l A steam cover is installed at the inlet and outlet of the equipment to prevent the diffusion of steam and effectively prevent the temperature rise of the space;

l The heating section and cooling section is constructed separately to prevent the interaction of water temperature.

l The heat exchange area is larger than that of market products. The heating is more uniform, the heating speed is faster, and the temperature control is more stable.

l The rock wool is only used for the heat preservation and heating part without disassembly. It is energy-saving and environment-friendly during the heating phase. The cooling section is exposed to dissipate heat quickly.

l Compared with the traditional sterilization and cooling process, it has the advantages of time saving, convenient operation and safety.

Technical Parameters of Water Immersion Type Pasteurizer and Cooling Machine



  General Information

Type  Sterilization Machine
 Machine name Water bath sterilizer
Application Bottled juice/ Canned food sterilization machine for many kinds industry for bottle sterilizer
 Function  Widely used for bottle juice, bottle paste,fruit can production line and food can production line, etc

  Configuration

 Temperature control instrument  Japan omron
 The sterilizer control valve  Taiwan
 Weidmuller terminals  Germany
 The sterilizer control valve  Taiwan
 Governor  Denmark danfoss frequency converter speed control

Technical Parameters

 Sterilization machine body material  2.5 5 mm thick SUS304 stainless steel welded together
 Sterilization machine  The chain material sterilization machine to adopt chain plate,

 High temperature resistant PP material Israel petrochemical

 Electric cabinet  304 stainless steel plate bending welding production
 Conveyor line frame material  2 mm thick SUS304 stainless steel
 Sterilization  Move motor 1.5 KW jinlong motor IP55 protection level
 Chain conveyor line board power  0.75 KW worm gear and worm gear motor
 Water pump  South China brand 304 stainless steel high pressure water pump
